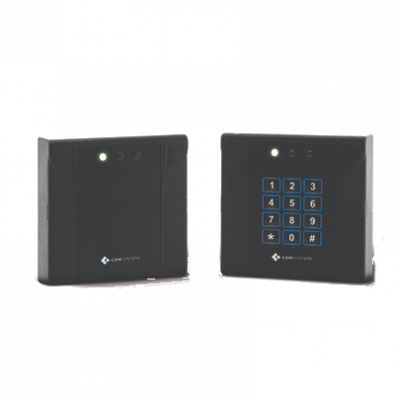

sPass Intelligent Readers

A cost effective contactless smart card reader with powerful security and encryption features. The sPass reader utilizes 128bit AES encryption, 3DES (Triple DES) encryption and highly secure DESFire technology. It is designed to be connected to the CEM DCM 350 or eDCM 380 (Door Controller) with encrypted RS485 serial communications between the sPass reader and the controller.

Combined as one solution, the sPass reader and DCM 350 or DCM 380 controller range offers a cost effective solution which combats against the threats of card cloning and Wiegand controller signal cloning.

The sPass reader is designed for use with CEM’s pre-personalized DESFire smart card. With a pre-personalized card memory, the CEM DESFire smart card holds up to 28 different security applications. Using 3DES or AES 128 bit encryption, memory keys are securely stored on the DESFire smart card. No keys permanently reside within the sPass reader, with each card having uniquely encrypted keys for high levels of security.

商品說明

A cost effective contactless smart card reader with powerful security and encryption features. The sPass reader utilizes 128bit AES encryption, 3DES (Triple DES) encryption and highly secure DESFire technology. It is designed to be connected to the CEM DCM 350 or eDCM 380 (Door Controller) with encrypted RS485 serial communications between the sPass reader and the controller.

Combined as one solution, the sPass reader and DCM 350 or DCM 380 controller range offers a cost effective solution which combats against the threats of card cloning and Wiegand controller signal cloning.

The sPass reader is designed for use with CEM’s pre-personalized DESFire smart card. With a pre-personalized card memory, the CEM DESFire smart card holds up to 28 different security applications. Using 3DES or AES 128 bit encryption, memory keys are securely stored on the DESFire smart card. No keys permanently reside within the sPass reader, with each card having uniquely encrypted keys for high levels of security.

Features

– Utilizes highly secure 128 bit AES encryption and 3DES (Triple DES) technology
– Secure RS485 serial encrypted communications to the DCM 350 or eDCM 380 door controller
– Combats against card cloning and Wiegand signal controller cloning
– No programming or set up required
– Available with keypad for added PIN security
– 13.56 MHz smart card read frequency
– Three onboard LED indicators to visually confirm/deny entry
– Built in Tamper switch
– Built in Sounder
– Suitable for indoor or outdoor applications
– Available in Gray or Black
