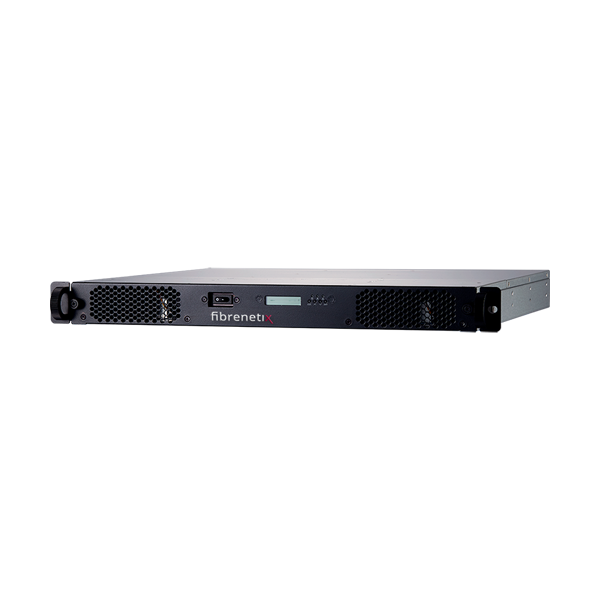

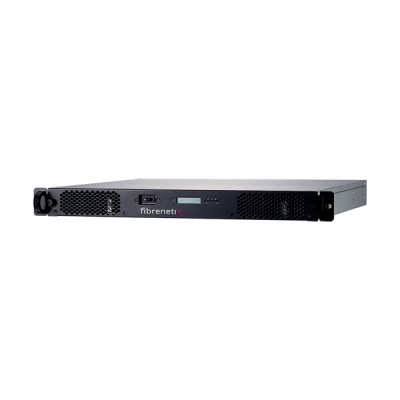

E Series (E8 & E88) – High Performance, iSCSI RAID System

Fibrenetix E8 RAID Storage is the powerhouse of the E-Series. Designed and developed for today’s most demanding Video Surveillance installations, the E8 offers unparalleled performance of up to 1900MB/sec when fully loaded with SAS drives and 1500MB/sec with SATA drives. Whether you work with HD or 4K Cameras, the E8 & E88 meets your performance needs.

分類:

商品說明

Features

  • 2x 10Gbit ethernet host connections
  • 4GB Cache as standard, upgradeable to 8GB
  • Dual Active/Active RAID controller option (SAS drives only) for maximum fault tolerance
  • Supports high performance 12Gbit SAS, 6Gbit SATA-III & Solid-State Disks, pushing transfer rates and reliability to a new level
  • Selectable RAID levels: JBOD, 0, 1, 0+1, 3, 5, 30, 50, 60 plus RAID-6 for the ultimate protection of your valuable data
  • New Firmware and Graphic User Interface, with optional LUN masking capabilities
  • Optional multi-lane SAS connector for expandability and scalability – add JBOD storage to connect up to 512 HDDs
  • High-end enterprise E-Series caddy system offers the best protection of hard drives and data, supporting 10K & 15K RPM hard drives
  • Flexibility to use SAS and SATA drives simultaneously in a single E8 enclosure (single controller only)
  • Powerful dual redundant PSU’s – offering sufficient power to support high performance hard drives and controller
  • With increased reliability and MTBF (mean time between failures) of critical components ‘Environmentally friendly’ E8 supports industry standard MAID technology (spinning down drives when not in use), considerably reducing power consumption
  • Intelligent cooling system continuously adapts to environmental conditions by automatically controlling the speed of the fans for optimal cooling
  • Sophisticated monitoring and alert system enabling the system administrator to monitor and receive alerts via onboard Ethernet connection
  • Built-in management software supports most internet browsers and alerts can be sent via POP3 email, SNMP or network broadcasting, ALL without any installation of software or drivers on the hostRobust 1U, 2U 12-bay, 3U 16-bay

產品規格手冊

Fibrenetix_E8_E88_datasheet_v4
