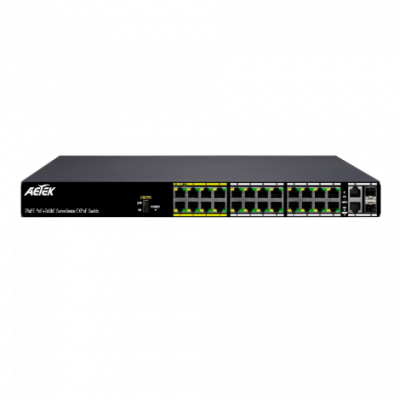

AETEK’s C11 indoor unmanaged EXPoE switch series equipped with DIP switch provides EX “EXtensive” operation mode. C11 series is specially designed for IP Surveillance application, besides standard 802.3af/at PoE functions, the EX mode delivers extreme distances of camera image & power maximum up to 250m via specific EX ports for long reach PoE IP cameras. Meanwhile, the C11 series also features extra 20% range of input voltage tolerance, lightning surge protection of AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge and power spike. These unique features reduce the costs to replace damaged fault unit.
The C11 series has five sub models consisting of 6, 10, 18, and 26 ports with a range of power budgets from 65W to 380W for IP surveillance.
Features
– 8 of the 24 PoE ports can be adjusted as EX PoE mode
– Total power budget 380W
– 15.4W/30W 802.3af/802.3at compliant
– 12KV PoE surge protection each port
– 4KV AC surge protection
– 20% range of input voltage tolerance
– Circuit protection prevents power interference between ports
– Detects PoE PD (power device) automatically
– EX mode OFF reaches PoE camera up to 100m@100Mbps via any port
– EX mode ON reaches 802.3af camera up to 250m@10Mbps via EXPoE ports
– EX mode ON reaches 802.3at camera up to 200m@10Mbps via EXPoE ports
