AgileCore AI 180 Degree Panoramic Mini Bullet Network Camera

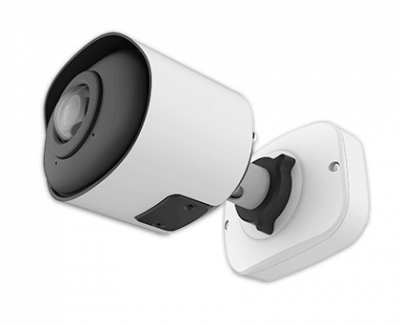

AI 180° Panoramic Mini Bullet Network Camera

180° Panoramic View
The 180° Panoramic H.265+ Mini Bullet Network Camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.

4K Ultra High Definition
The 180° Panoramic H.265+ Mini Bullet Network Camera features with 4K ultra high definition which better restores the images to guarantee superb image quality of 3840×2160. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to offer presented images. Therefore, the high resolution is vital for the model.

120dB Super WDR
AgileCore’s sensor-based WDR technology allows the 180° Panoramic H.265+ Mini Bullet Network Camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

0.005Lux Ultra Low-light
The 180° Panoramic H.265+ Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Revolutionary IR Performance
To maximize the IR performance, the 180° Panoramic H.265+ Mini Bullet Network Camera innovated both in the structure and technology. With two IR LEDs which has angles to truly realize the 180° IR coverage, the IR design also features adjustable illumination intensity IR LEDs to guarantee IR performance. And the IR reflection is ably avoided by the separated IR LEDs and Lens, achieving the best effect.

Video Content Analysis (VCA)
AgileCore VCA with 10 detection modes provides advanced, accurate smart video analysis for AgileCore network cameras, enabling the comprehensive surveillance function and quicker response to different monitoring scenes.

Advanced Heat Map
With scenario-adaptable and flexible configurations, AgileCore Advanced Heat Map is embedded into the Panoramic Series, which can analyze customers movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the 180° Panoramic H.265+ Mini Bullet Network Camera is well protected against adverse impacts to ensure the robust performance.

Advanced Built-in Microphone
With the built-in microphone which adopts the advanced codec, the 180° Panoramic H.265+ Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that AgileCore uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

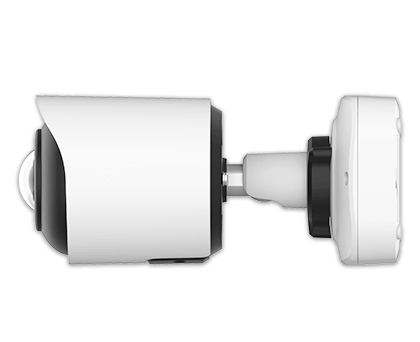

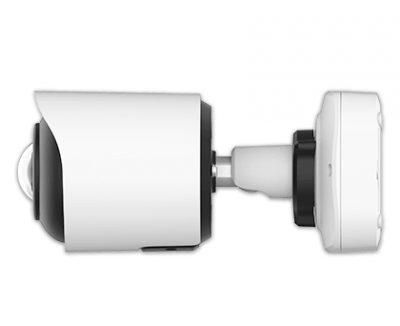

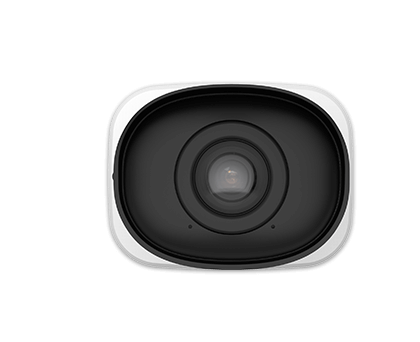

Exquisite Design
With ultra mini size of 95.8mmX74mmX158.5mm, the 180° Panoramic H.265+ Mini Bullet Network Camera is a truly mini bullet with no compromise on the functionality. The considerate structure and the 3-axis mechanical design make sure of the network camera’s best ease of use, realizing the greatest user experience.

Integrated Junction Box
The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of unique IP67-rated weather-proof design and pioneering Point-contact Power Supply, the Integrated Junction Box is able to offer stable operation and supreme user-experience.

SIP/VoIP Support
The 180° Panoramic H.265+ Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Description

Features

  • NDAA Compliance (The fully NDAA-compliant products are well suited for government, defense and a range of projects subject to the NDAA.
  • 120dB Super WDR (Excellent performance even when the ratio of the luminosity of brightest and darkest is up to 120dB.)
  • Advanced Functions (Boasting to support various advanced functions such as HLC.ROI.)
  • 256G(Supporting ultra-large external microSD/SDHC/SDXC card storage up to 256G.)
  • Adjustable 3-Axis Bracket (Providing a robust mounting platform for angle adjustments on a 3-axis plane.)
  • Built-in Microphone (Supporting audio function to hear what is happening in front of the camera.)
  • Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265* saves 70%~80% bandwidth that of H.264.)

Catalogue

AI 180° Panoramic Mini Bullet Network Camera
