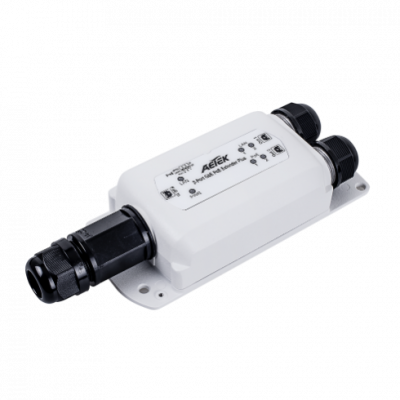

E69-602

The E69-602 is IP67-rated & harden-graded Gigabit PoE Extender, operating temperature from -40°~65°C. It’s ideal for harsh outdoor environment where two units of E69-602 can be daisy-chain to prolong range of PoE devices such as PoE cameras, wireless APs reaching up to 500m from end to end. No power adapter required, E69-602 Gigabit PoE Extender is powered by Bt/UPoE Injector, Middle-Span Hub, or PoE switch over one networking cable extending Ethernet range depending on PD’s power consumption and PSE’s power budget per port.

The E69-602 is built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

分類: 標籤:

商品說明

The E69-602 is IP67-rated & harden-graded Gigabit PoE Extender, operating temperature from -40°~65°C. It’s ideal for harsh outdoor environment where two units of E69-602 can be daisy-chain to prolong range of PoE devices such as PoE cameras, wireless APs reaching up to 500m from end to end. No power adapter required, E69-602 Gigabit PoE Extender is powered by Bt/UPoE Injector, Middle-Span Hub, or PoE switch over one networking cable extending Ethernet range depending on PD’s power consumption and PSE’s power budget per port.

The E69-602 is built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

Features

– Voltage Booster
– Adjustable DC 24V/54V PoE output
– Supported PSEs providing 95W/60W/30W PoE
– Drives the reach beyond restricted 100m Ethernet distance
– Eliminates intermediate PoE switchs & redundant Ethernat cables
– Powered by single PSE w/o local power required

產品規格手冊

E59_E69 (E59-602, E69-602) datasheet-190114
